This is my perspective sketching.
Project 3A : Perspective
Issued date
: 27 July 2009

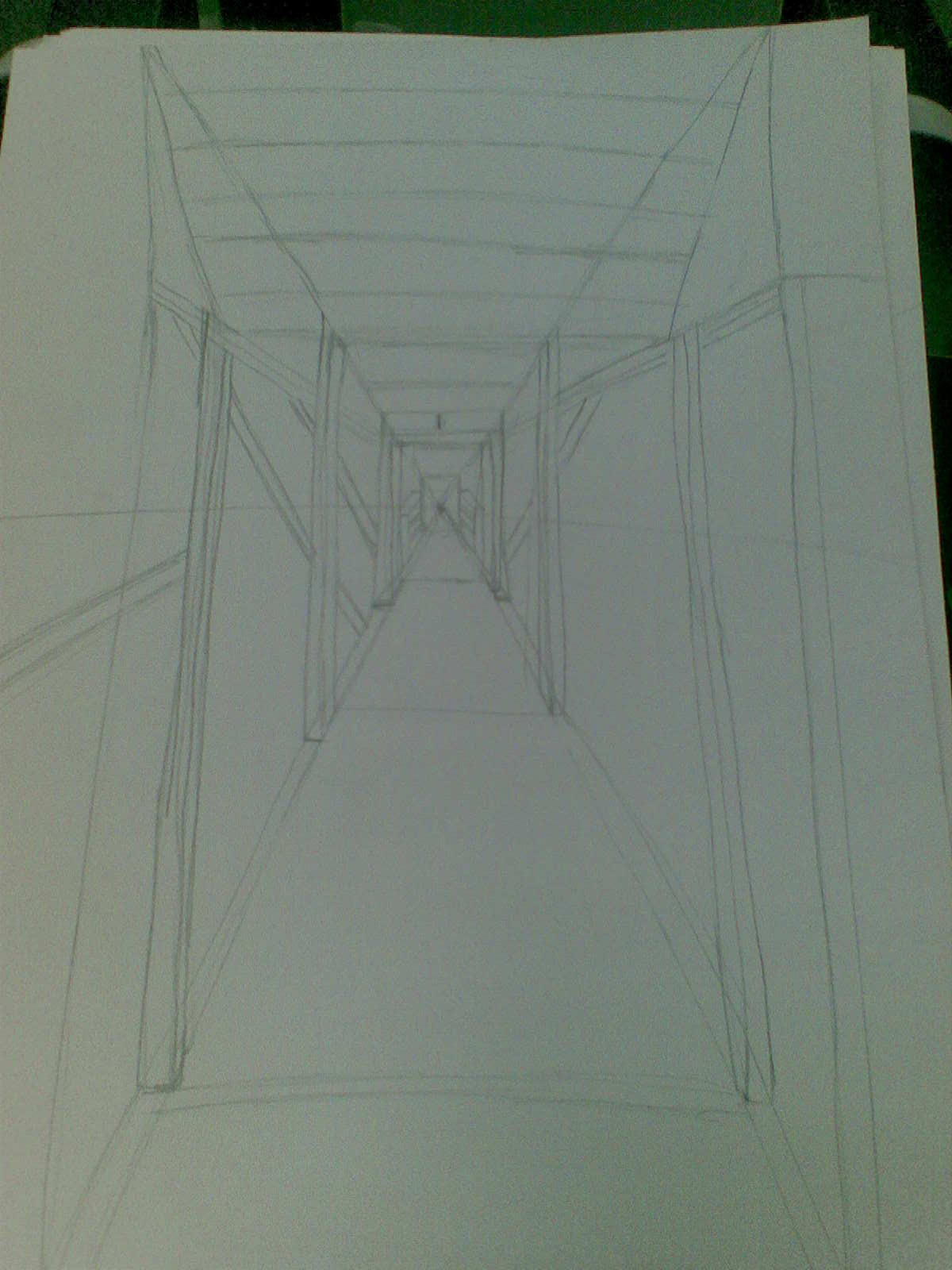

We need to draw three different sheets of perspective drawings. Let's have a look at the other page. I have uploaded at a new page.
Project 3B : Projected Obelisk
Issued date
: 31 July 2009
On one A2

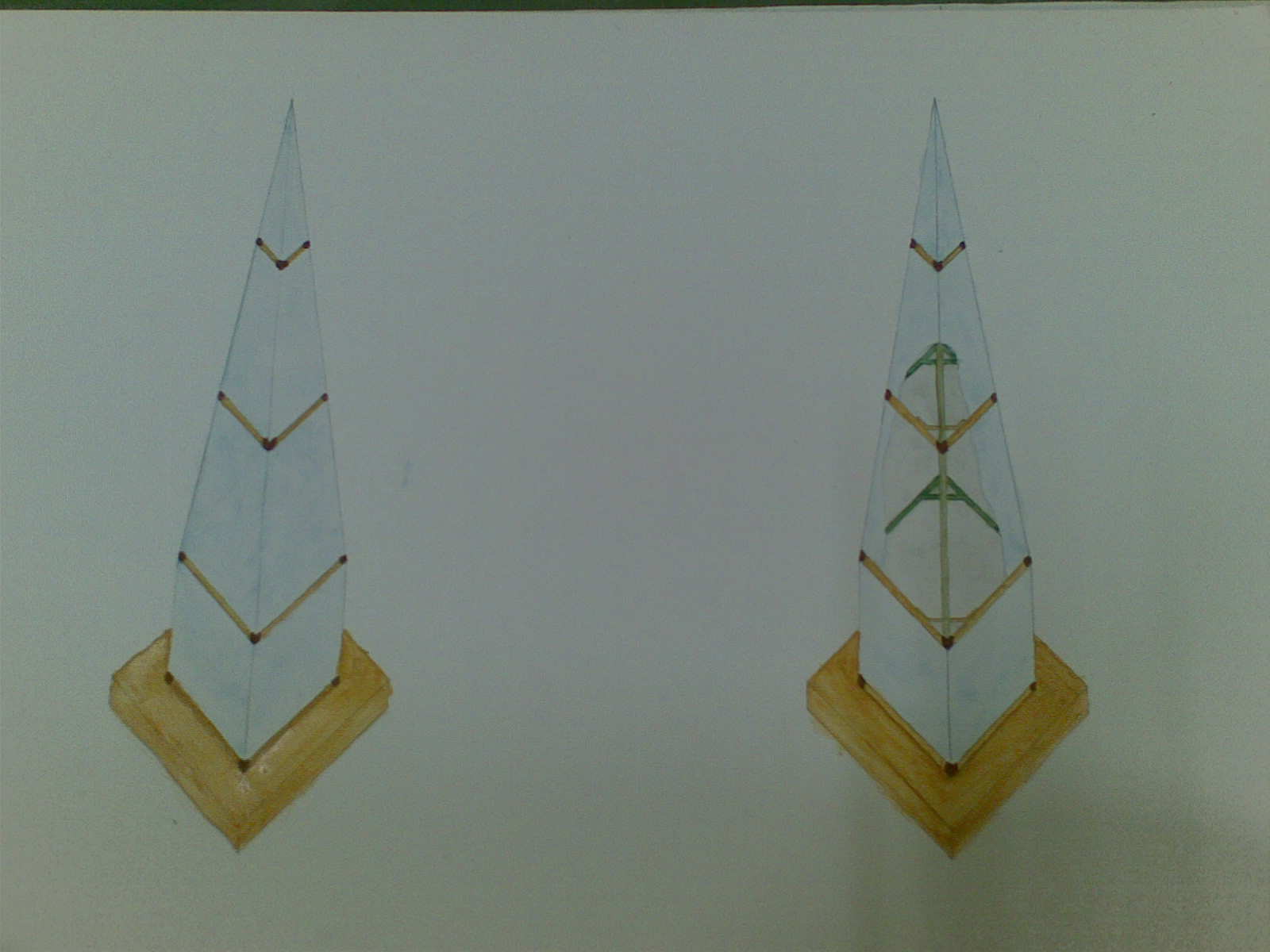

catridge paper, we should project our own obelisk in at least 2 ways. We must
draw the tearing of a part of the obelisk in the projection. Upon completion,
we have to reduce the A2 size of catridge paper into A4 paper with black and
white or greyscale.

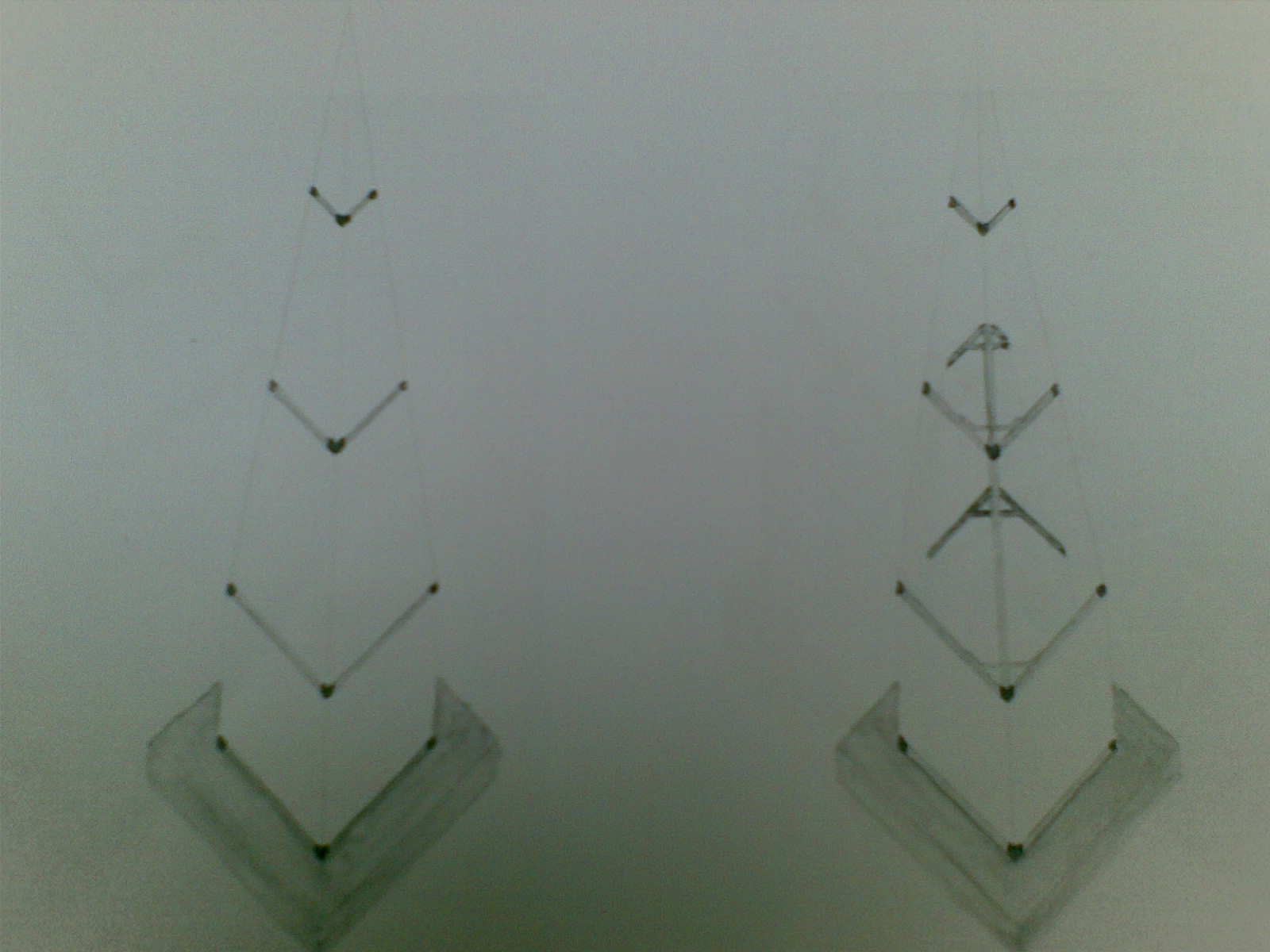

This is my A4 paper with greyscale.
Project 3C : Black Box
Cube and Black Box
Issued date
: 03 August 2009

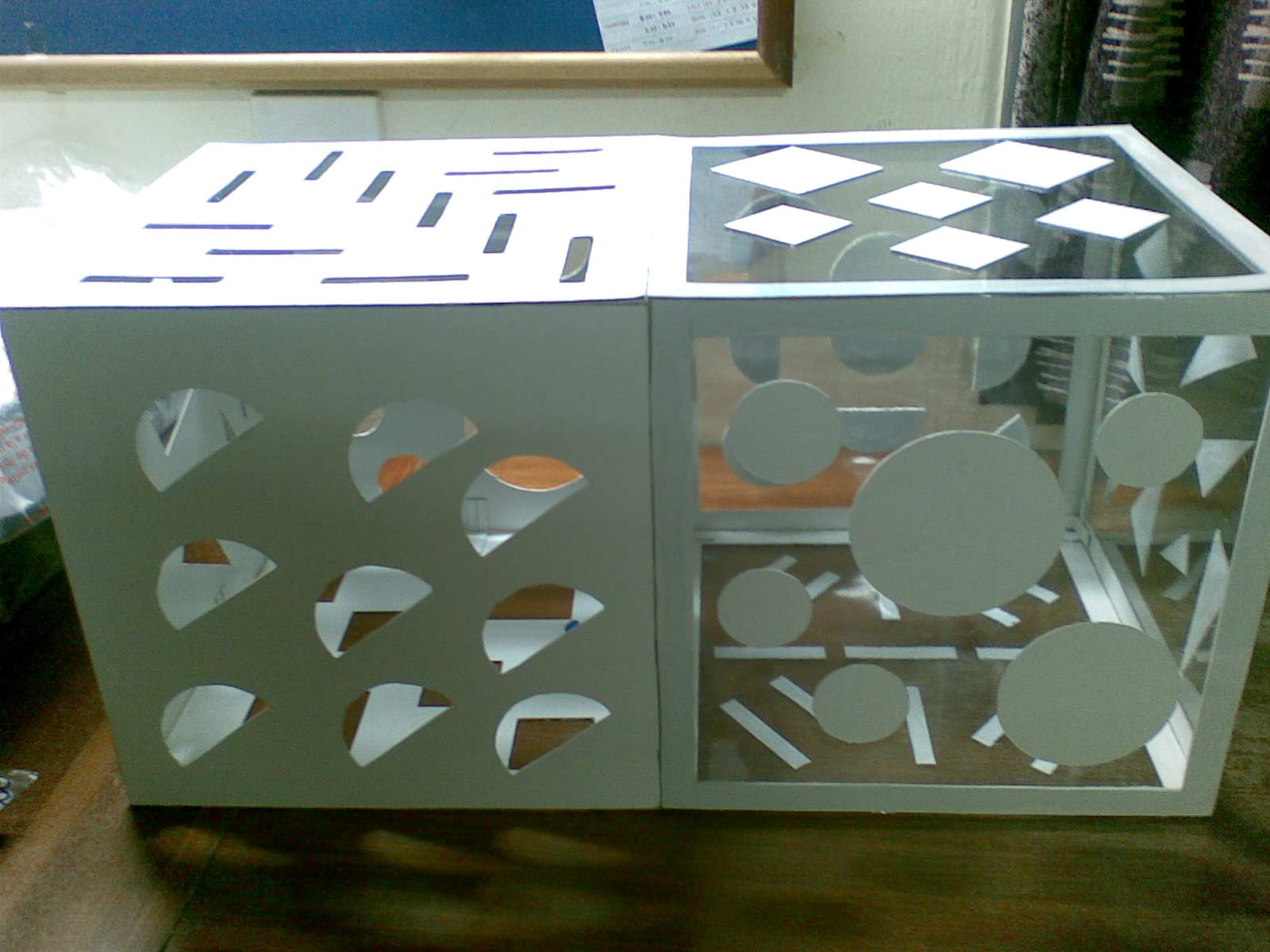

Our cubes
must at a size of 500mm×250mm×250mm. Cube A and cube B is side by side. Cube A
must have the subtraction elements and cube B must have the accretion elements.
Cube B must be closed with transparency. The elements that have been eliminated
in the subtraction cube A should be included as a design in the accretion cube
B. Our cubes must use white mounting board for the whole design, include a

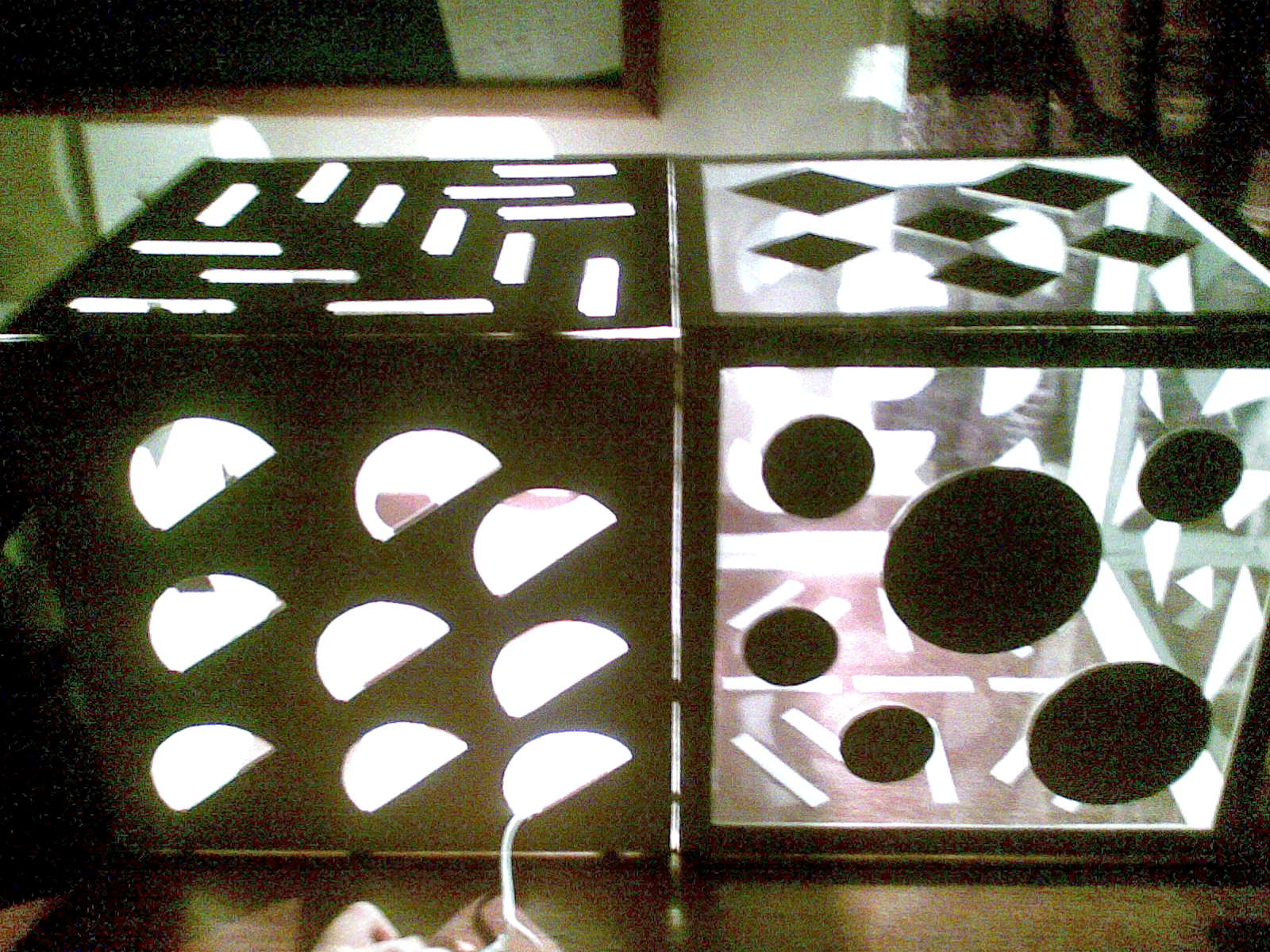

transparency glued to the frame of cube B. The cubes should contain the light
bulb.

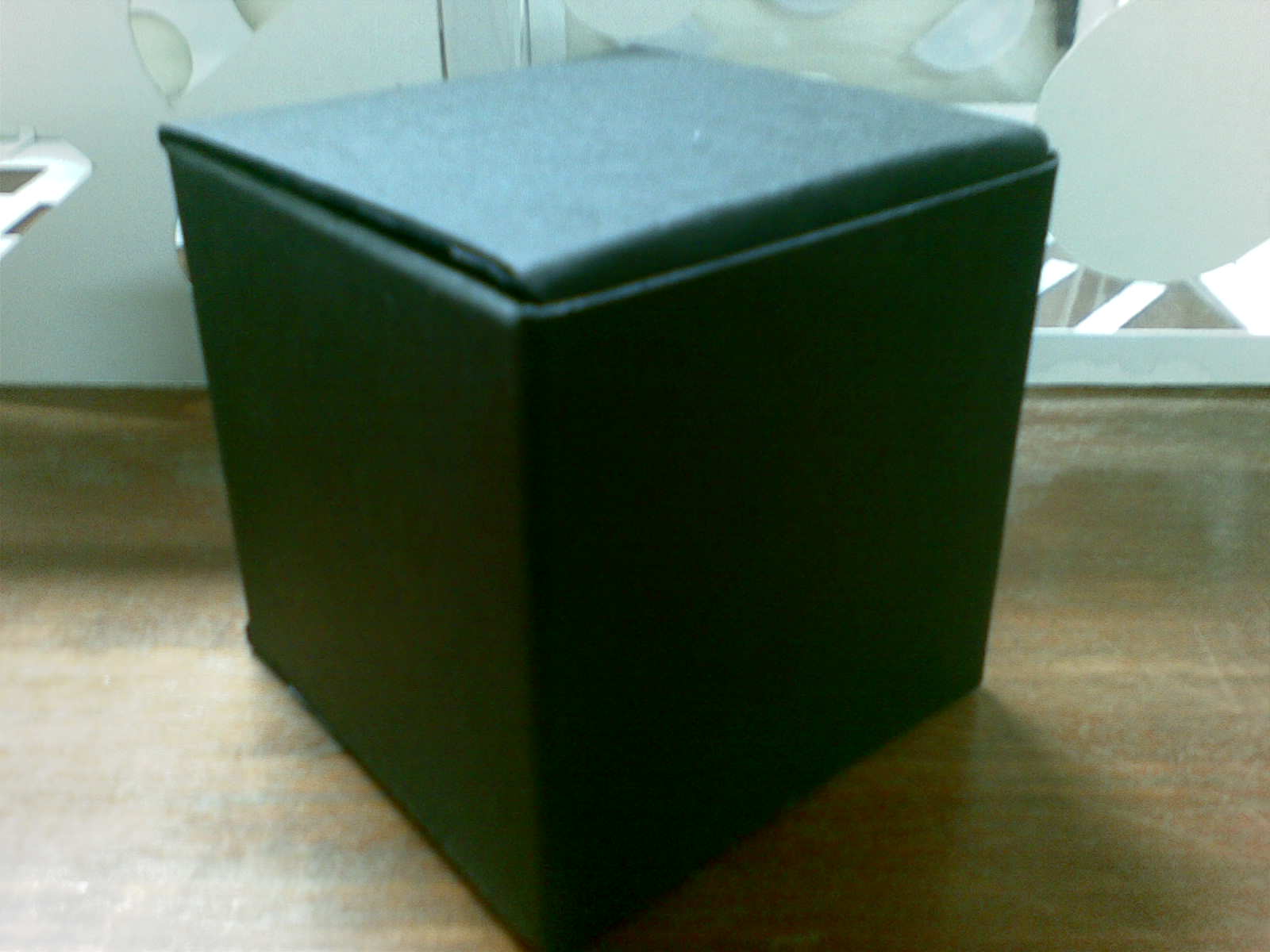

The black
box is use to keep battery that supply energy to the light bulb and wires.
